Spec	Titan 1000W

Model

Model Name	Titan 1000
Model Number	PSAZ-1000a14

Spec

Type	ATX & EPS 12V 2.92
Maximum Power	1000W

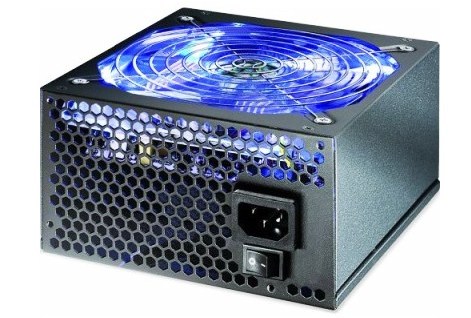

Fans	1x140mm Blue LED Fan
PFC	Active
Main Connector	20+4pin, 8(4+4)pin
12V Rails	Single Rail
PCI-E Connector	2x6pin, 2x(6+2pin)
SLI	Ready
CrossFire	Ready
Efficiency	>80%
Efficiency Certify	80+ Bronze Certify
Over Voltage Protection	Yes
Over Load Protection	Yes
Input Voltage	115V - 240V
Input Frequency Range	60Hz/50Hz
Input Current	15A
Output	+3.3V@24A, +5V@24A, +12V@83A -12V@0.5A, +5VSB@3A
MTBF	100,000 hrs at 25°C, Full Load

Feature

Connector	1x20+4 Pin Motherboard 1x8(4+4)Pin EPS Connector 2xSLI Connector 8xSATA Connector 5xIDE Connector 1xFloppy Connector
VER	2.92
Fan	1x140mm Blue LED Super Silent Fan
Warranty	3 Years Parts Limited 3 Years Labor Limited

AC INPUT		115Vac~ 240Vac  15A   60HZ/50Hz
DC OUTPUT		+3.3V	+5V	+12V	-12V	+5VSB
1000W	Max output Curren	24A	24A	83A	0.5A	3.0A
	Max combined Wattage	120W		996W	6W	15W
		1000W

20+4 pin	8 pin	P4 MB	SATA	Peripheral	FDD	PCI-E
x1	x1	x0	x8	x5	x1	2x6pin+2x8pin
